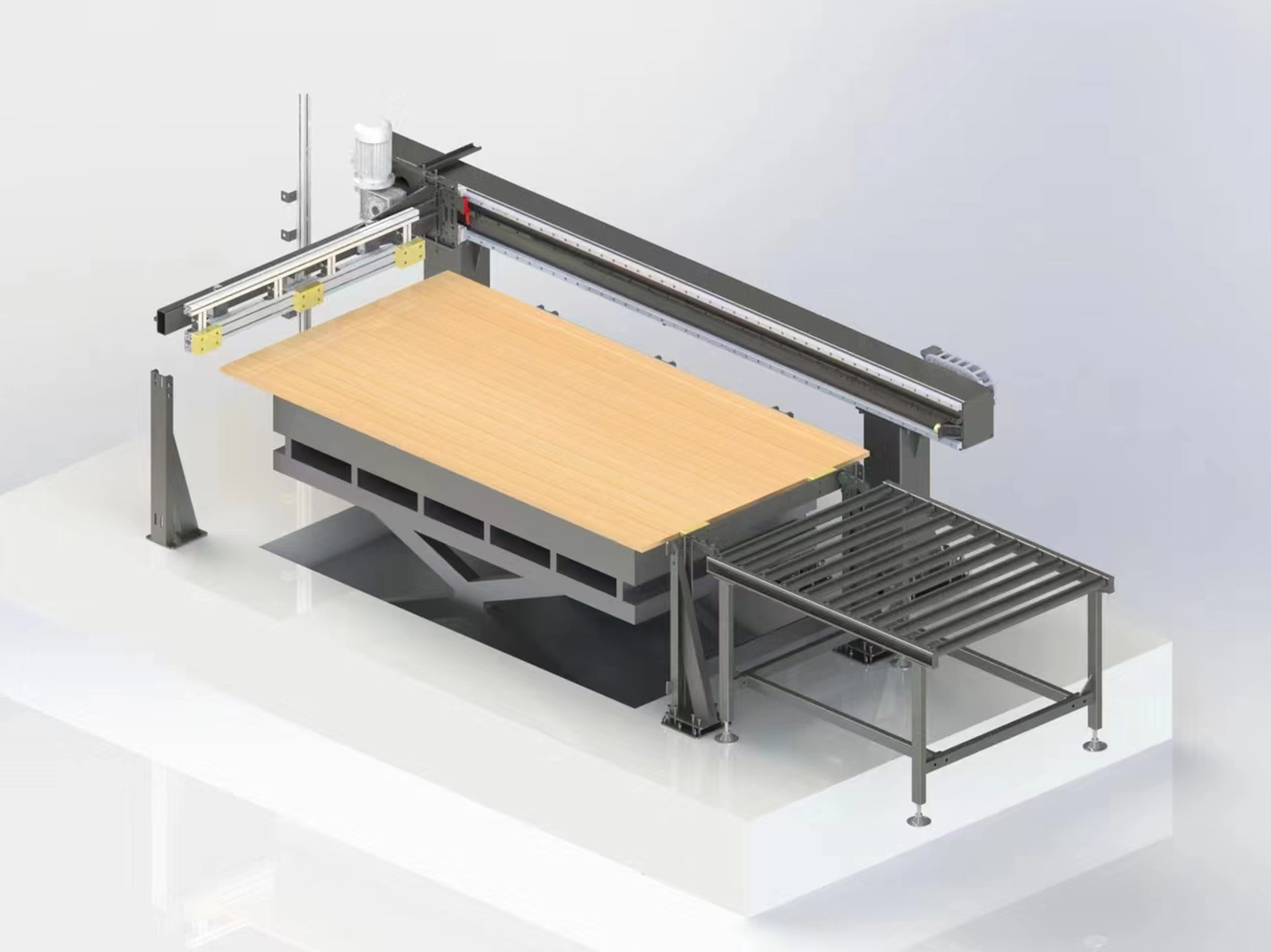

Intelligent board pushing machine
Product details

Product Design Advantages

1. With a counting function, it can precisely control the production volume;
2. The operating system adopts a touch screen/PLC control system, featuring precise control, easy operation, and automated operation;
3. The frame is made of large-sized thick square tubes that are cut and welded in one piece, ensuring no deformation after long-term use and high precision;
4. This machine can continuously transport plates and can be paired with an automatic cutting machine and a plate turnover machine to achieve automation of the entire production process;
5. This machine can be used in conjunction with equipment such as cutting machines, sanding machines, engraving machines, and sticker machines, greatly improving work efficiency and reducing the number of manual laborers.

Hardware Parameters
Equipment Dimensions 3000*2000*400-1100mm
Maximum Pushing Plate Size 1220*2440*100mm
Minimum Pushing Plate Size 1220*2440*10mm
Pushing Plate Speed 5m/min
Motor Power 2.6kw
Motor Speed 1450rpm
Lift Automatic lifting
