Air Flotation Table Conveyor
Air flotation table conveyor, or we can call it an air table in short, is designed to provide safe and easy handling for large and heavy items in manual manufacturing processes. The positive pressure generated by the air float bead can offset part of the heavy weight of the plate to reduce the friction between the plate and the table. This will not only help to protect the plate, but also will help to reduce the labor intensity of the worker.
Product details

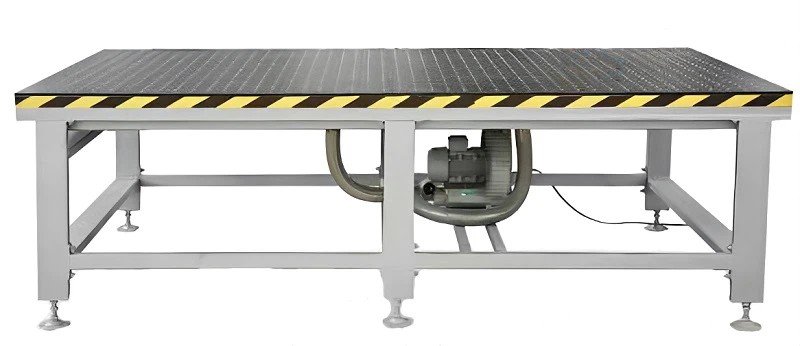

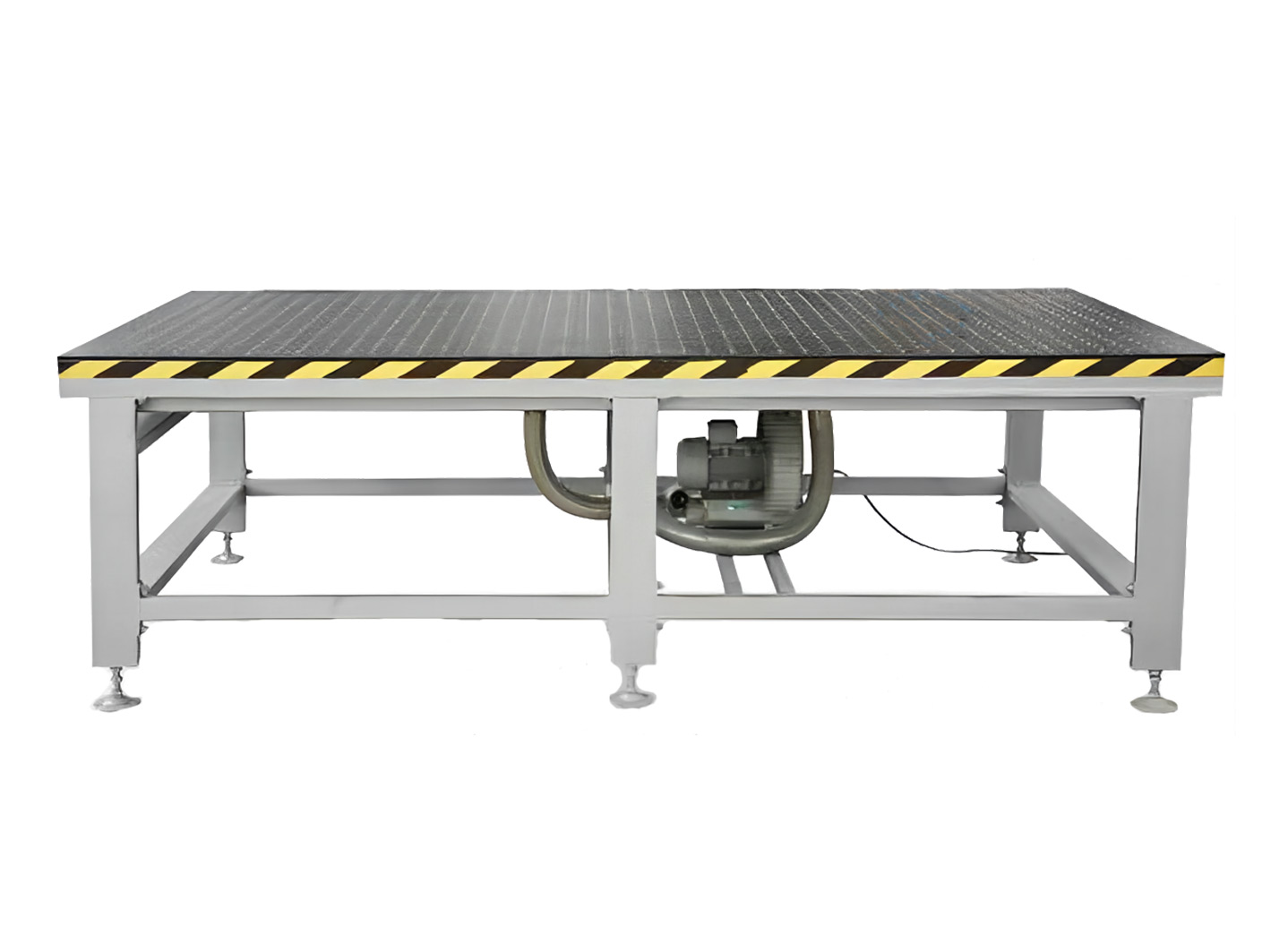

Air flotation table conveyor, or we can call it an air table in short, is designed to provide safe and easy handling for large and heavy items in manual manufacturing processes. The positive pressure generated by the air float bead can offset part of the heavy weight of the plate to reduce the friction between the plate and the table. This will not only help to protect the plate, but also will help to reduce the labor intensity of the worker. To be brief, there will form a layer of air will form between the table surface and the material being moved when air is pressurized in a plenum and discharged through small holes in the table's deck, so workers can easily transport the plate. Usually, the air flow is created by a blower that is mounted underneath the table. A boundary layer of air forms, allowing effortless movement of heavy materials over the table surface.

Specification

NO.

Type

Length(mm)

Width(mm)

Height(mm)

power

Floating beads

Support legs (mm)

1

QFT-1

2500

1250

900

0.55kw

Replaceable

80*40

2

QFT-2

2500

800

900

0.75kw

replaceable

80*40

3

QFT-3

2000

600

900

1.1kw

replaceable

80*40

Characteristics

Been in this industry for more than 10 years, BEIST has always provided the air floating table with the best quality components. Air table shape can be customized according to your panel sizes, in square, rectangular, or other shapes. Good raw material determines that our air-cushioned tables can float large and heavy products in an effortless way.

Our air flotation table conveyors enjoy the following benefits: First, they are fast and easy to install. Second, they are smooth to move and operate. Thirdly, they are clean and safe, and need little maintenance. Last but not least, they can greatly help factories to save costs by reducing labor costs and increasing productivity more safely, and the risk of injury to workers has also been reduced.

Application

BEIST air float table can be used in all kinds of manufacturing factories, such as furniture, automotive, aerospace, or new energy. It is often used in the turning line of the edge banding machine and the transfer material of the cutting saw. But pls notice the product itself must have enough surface area to support its weight, so these devices work best with products that have large flat bottom surfaces.

If you're interested in our air flotation table conveyor, no matter you purchase or not, don't hesitate to contact us; we're more than happy to help!
