Unpowered Roller Conveyor
Transfer Cart with Turntable

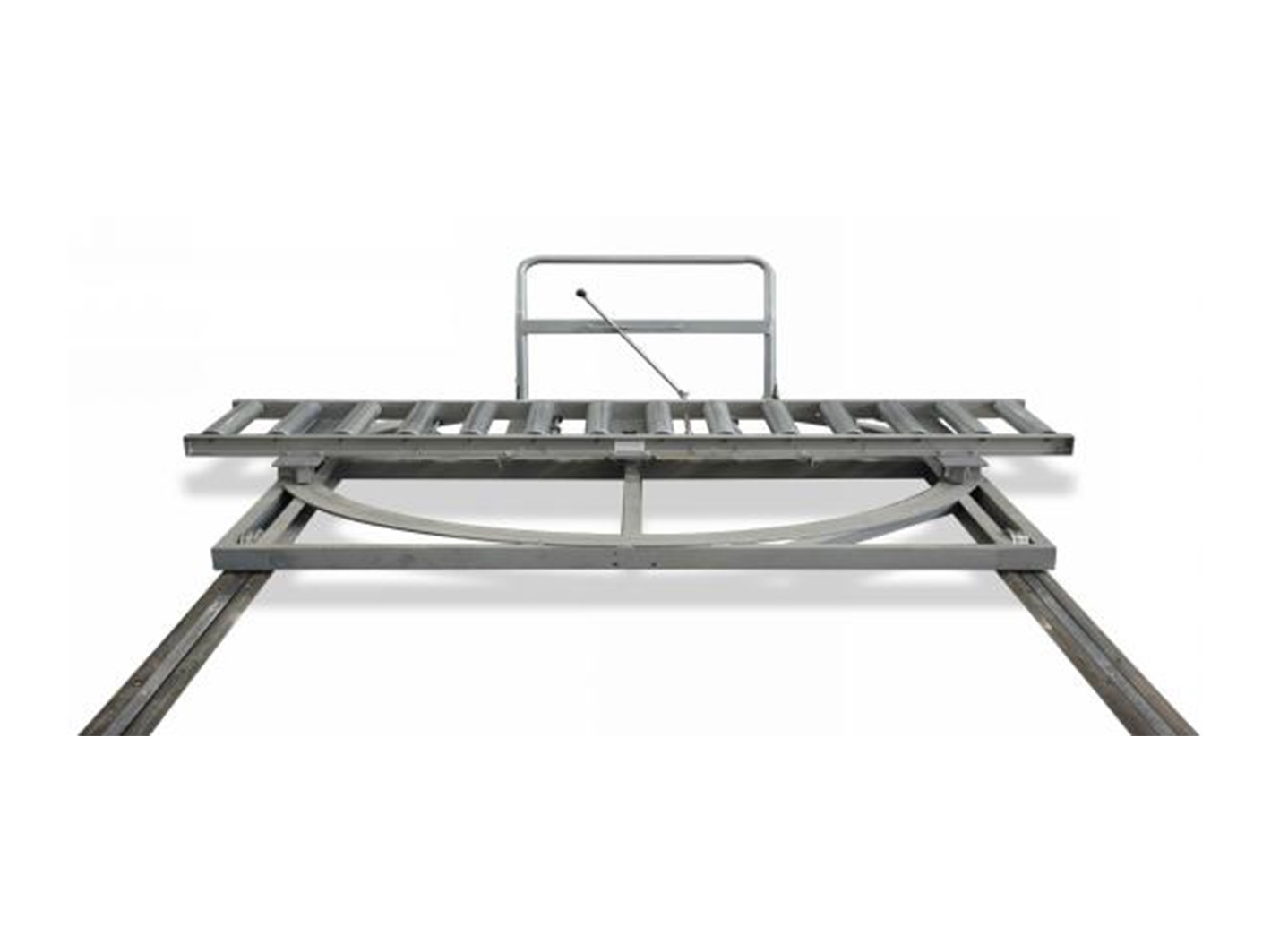

Beist Roller Transfer Cart with turnable On Rail, is a upgrade of Roller Transfer Cart on rail. Roller Transfer Cart on rail, is a combination of Roller Conveyor and cart, and on this basis, Roller Transfer Cart with turnable can even transfer products with radian.
Product details
Beist Roller Transfer Cart with turnable On Rail, is a upgrade of Roller Transfer Cart on rail. Roller Transfer Cart on rail, is a combination of Roller Conveyor and cart, and on this basis, Roller Transfer Cart with turnable can even transfer products with radian.
Unlike traditional Roller Conveyor Cart, Roller Transfer Cart On Rail needs to be installed and operated on rail, which not only has the function of roller conveyor but also has the function of hand cart.

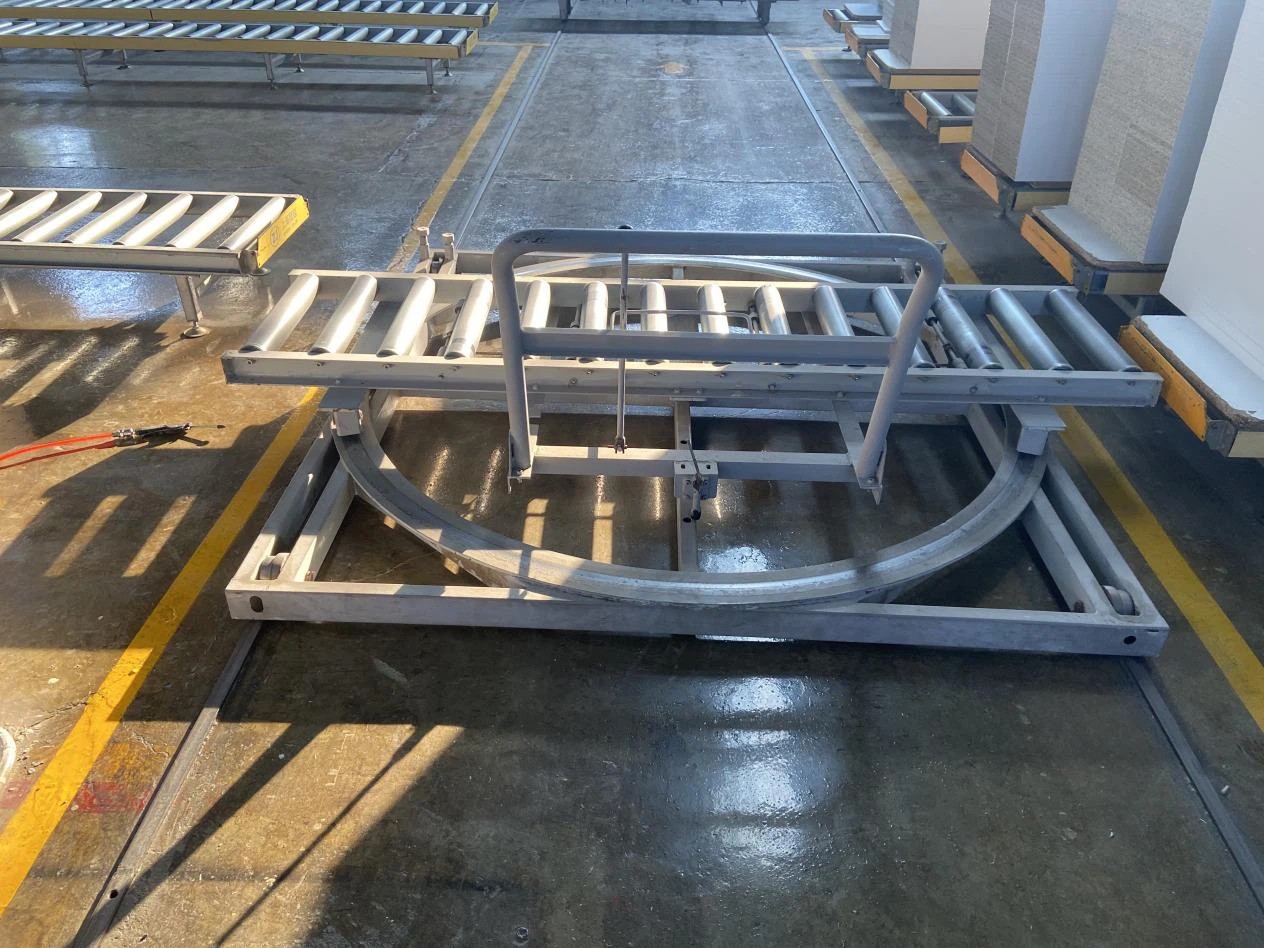

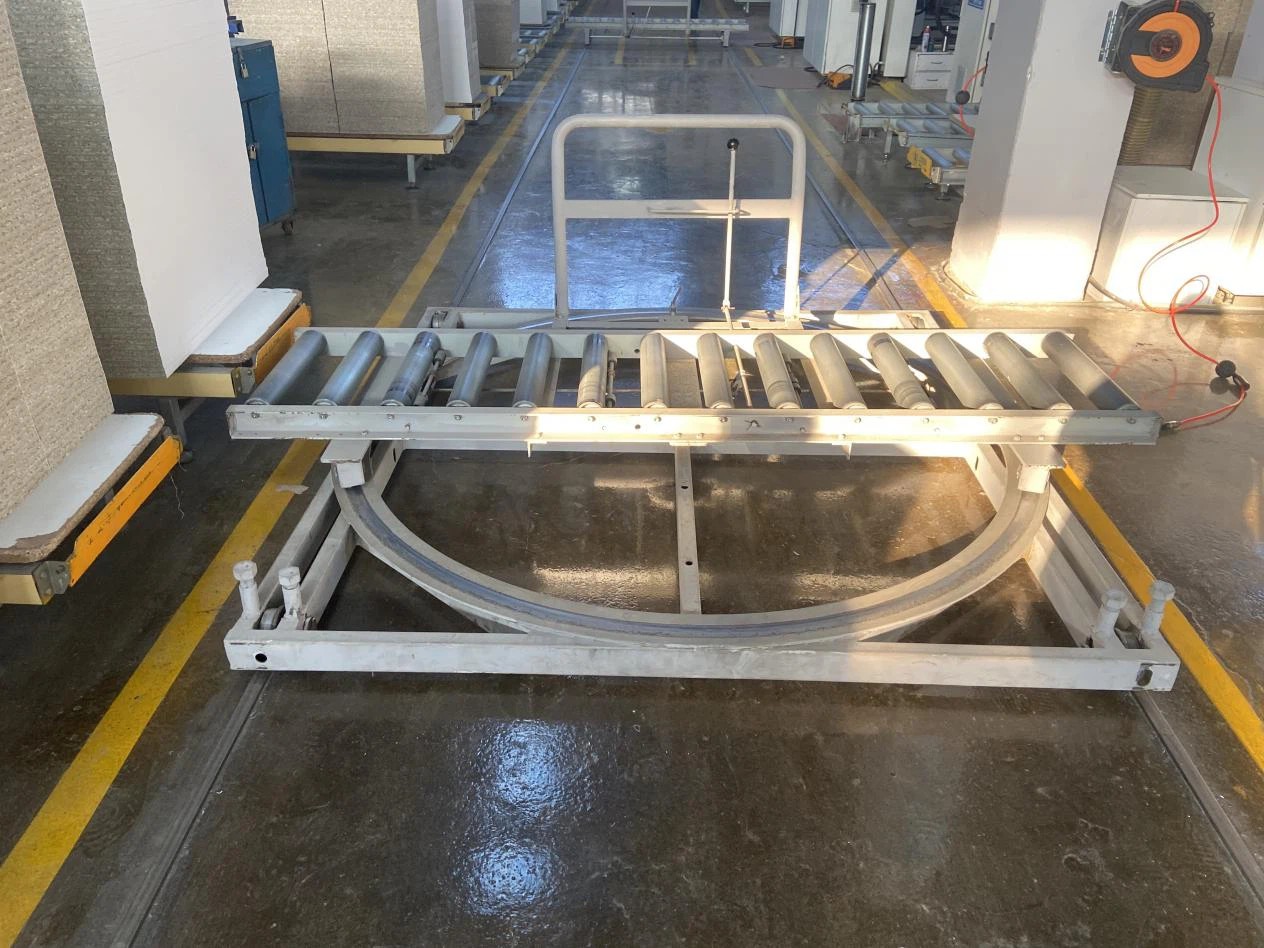

In order to let you have a visual impression of how this transfer Cart with Turntable works, please see the picture video we took at sight.
You see? I believe this roller conveyor must will be a great help for you in your factory no matter from the efficiency or from the function.
Specification
|
Model |
Width(mm) |
Length(mm) |
Height(mm) |
|
single row |
600 850 |
2500 2800 |
300 |
|
double row |
1300 |
|
Hard Param |
|
|
Application condition |
There should be a backing plate under the conveying product |
|
Plate size |
L2440*W610*H≥18mm |
|
Load |
1000kg/set |
|
Number of drum |
6 items/m |
|
Drum mounting system |
external thread |
|
Drive mode |
manual operation |
|
Girder |
3mm galvanized sheet |
|
Barrel |
φ76*1.8mm hot-dip galvanized pipe |
|
Rectangular tube welding |
φ12mm Cold-Drawn Steel |
|
Pedestal |
The 5mm thick 8# slot is welded to a φ2000mm disc |
|
Steel wheel |
φ110*40mm It is made of 45# round steel car |
|
Bearing |
One steel wheel is equipped with two 6304 national standard bearings |
|
Handrail |
φ38*2mm cold drawn pipe is welded by rolling bending |
|
Handrail Angle |
5mm equal thickness Angle steel is used |
|
Other |
A manual brake is built in to improve the transportation safety system |
|
The ground track needs to be selected separately |
Features
Transfer Cart With Turntable is suitable for conveying and converting the whole stack of sheet parts between different production process in the furniture production workshop or any other workshops, which greatly improve the flow rate between the production processes and makes the scene orderly and neatly.
Our Roller Transfer Cart with turnable on Rail enjoy the following advantages:
- Reliable: The main material of Conveyor Rollers is carbon steel plate, which ensures high strength and toughness, workers will be safe when using this to transfer heavy products.
- Flexible: This conveyor can also transfer goods with radian, multi direction.
- Orderly and Neat: The conveyors are working in orbit, which makes the factory to be orderly and neat.
- Easy Installation: Easy to setup, hassle-free operation. With two kinds of safety protection devices to improve the safety level during the conversion process;
- Convenient operation: User-friendly streamlined Handrail design. With two kinds of safety protection devices to improve the safety level during the conversion process.
- Maintenance-Free: Basically no need maintenance, service life more than 10 years.
- Match with Track line: Slope ground track line can be used to reinforce the pavement to effectively protect the ground wheel line.
- Corrosion resistance: The rollers are hot-dip galvanized pipes, which have high corrosion resistance and can pass 72-hour salt spray test.
If you are interested, please contact with us.
