Unpowered Roller Conveyor

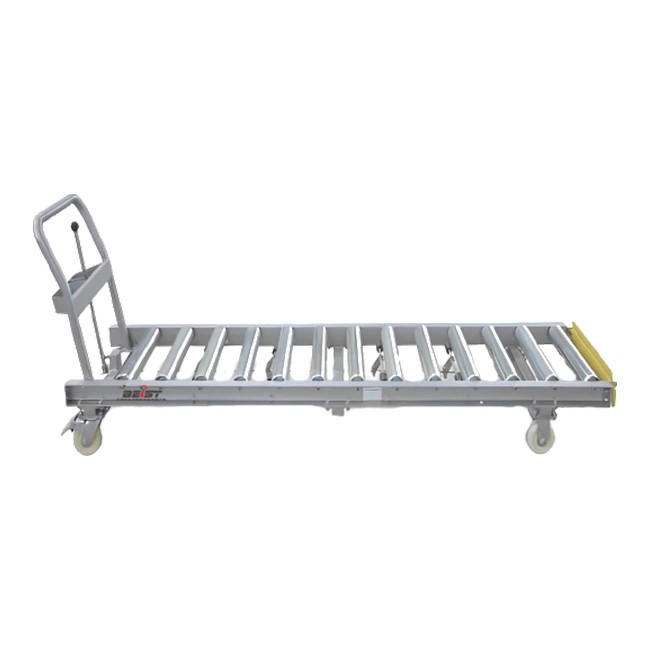

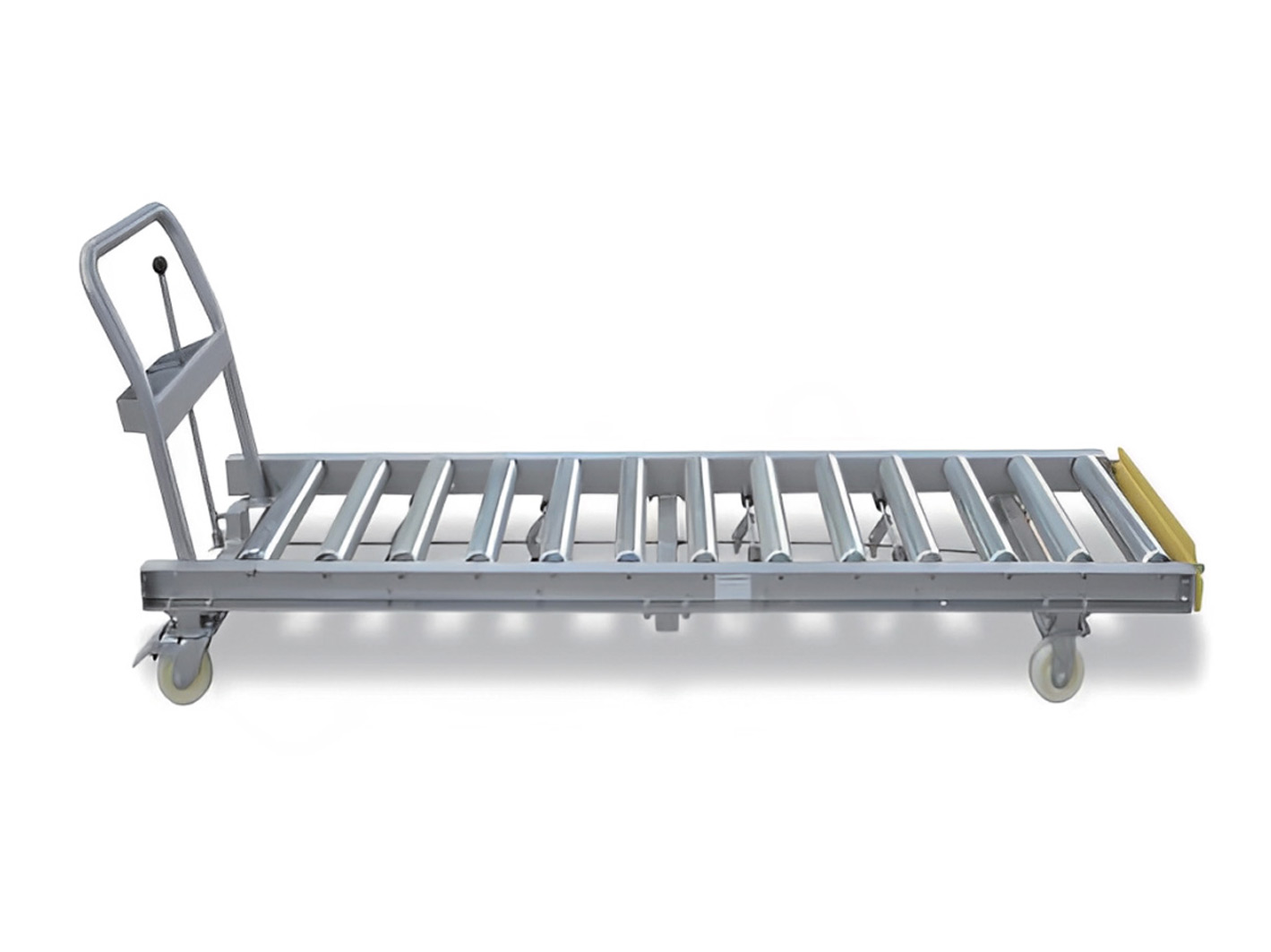

Roller Conveyor Cart
Conveyor cart is used to help to improve the workflow and efficiency for the manufacturing process. Made by carbon steel or galvanized plate, roller conveyor carts are very durable. Usually the cart is equipped with a handlebar for easy operation. The pallets can be rolled off easily between different manufacturing procedures.
Product details
Conveyor cart is used to help to improve the workflow and efficiency for the manufacturing process. Made by carbon steel or galvanized plate, roller conveyor carts are very durable. Usually the cart is equipped with a handlebar for easy operation. The pallets can be rolled off easily between different manufacturing procedures.
Specification
|
Item |
Specification |
|
Application condition |
There should be a backing plate under the conveying product |
|
Plate size |
L2440*W610*H≥18mm |
|
Load |
1000kg/set |
|
Number of roller |
5 /m |
|
Roller mounting system |
external thread |
|
Drive mode |
manual |
|
Girder |
3mm galvanized sheet |
|
Barrel |
φ76*1.8mm hot-dip galvanized pipe |
|
Inner spindle |
φ12mm Cold-Drawn Steel |
|
Wheel carrier |
50*30*3mm Rectangular tube welding |
|
Universal wheel |
Two 5-inch nylon wheels with brakes |
|
Directional wheel |
Two 5-inch nylon wheels |
|
Handrail |
φ38*2m Cold-drawn pipe is welded by rolling bending |
|
Other |
A manual brake is built in to improve the transportation safety system |
Features
Our Beist Roller Conveyor Carts enjoy the following advantages:
- Reliable and stable: The main material of Conveyor Rollers is carbon steel plate, which ensures high strength and toughness
- Convenient operation: user-friendly streamlined designed Handrail.
- Maintenance-Free: Basically no need maintenance, service life more than 10 years.
- Easy Installation: Easy to setup, hassle-free operation.
- Safety: Two kinds of safety protection devices are installed to improve the safety level during the conversion process. Specific wheel brake is equipped to ensure that the trolley is fixed when not in use, for loading and unloading the plates or products.
- Corrosion resistance: The rollers are hot-dip galvanized pipes, which have high corrosion resistance and can pass 72-hour salt spray test.
Application
Our Beist Roller Industrial Carts can be applied in various industries, like furniture factory, automotive equipment factory , new energy like Wind & Energy factory and distribution or Suppliers and so on, for the roller carts can provide a convenient way to operate industrial pallets. Like in furniture production workshop, roller carts can reduce the labor required to move materials from one location to another. So usually they can be used in combination with a conveyor station.
Our rollers carts are customizable in various sizes, materials, and configurations to meet different requirements across diverse environments. Choosing the right one can be the difference between efficiency and production constraint. A weak conveyor solution could delay a package or halt operations. Should you have problems about this, please consult us freely, you will get the suitable conveyor or conveyor systems you need.
