Hydraulic Lift Table

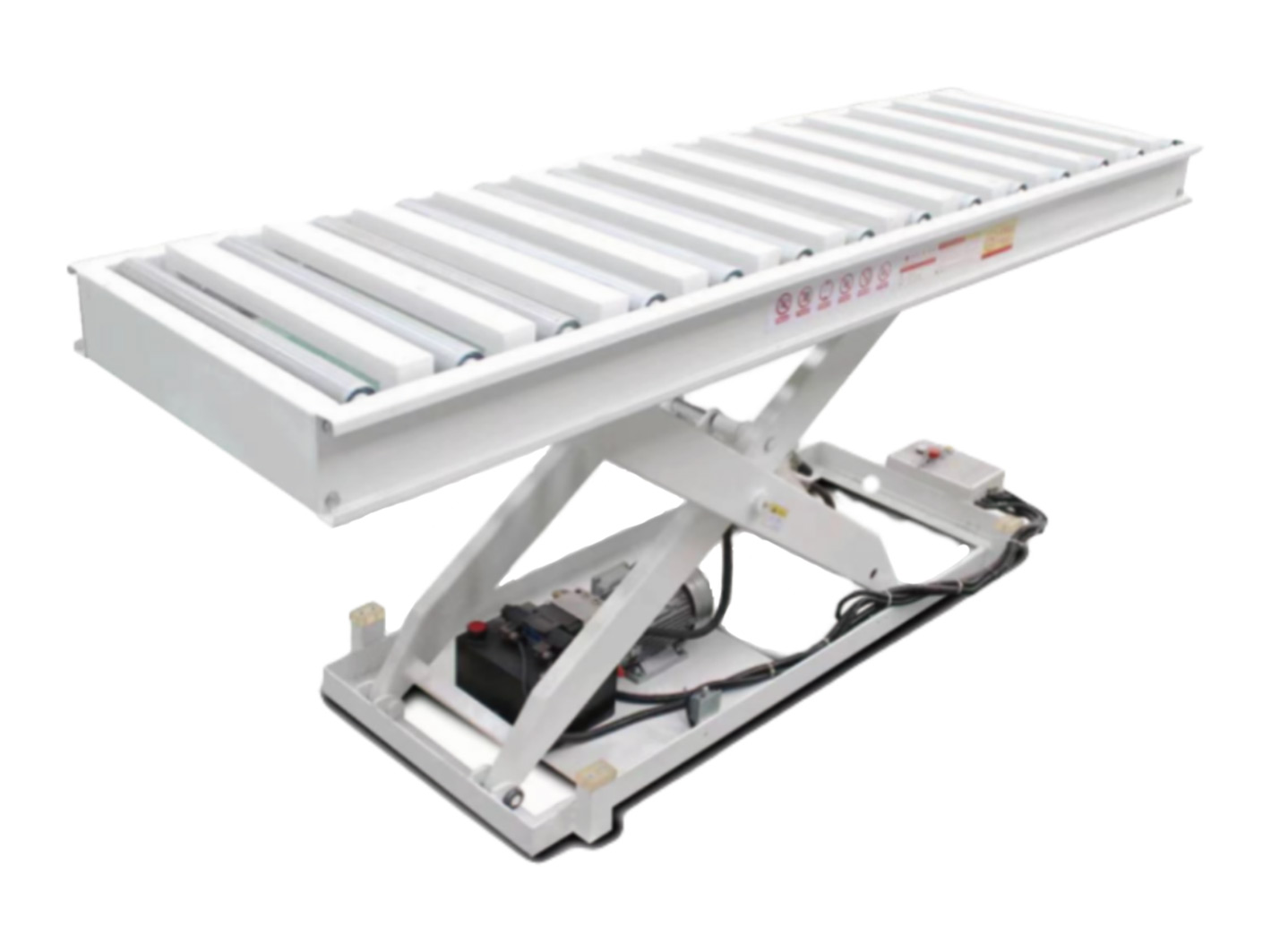

Lift Table with Conveyor Top

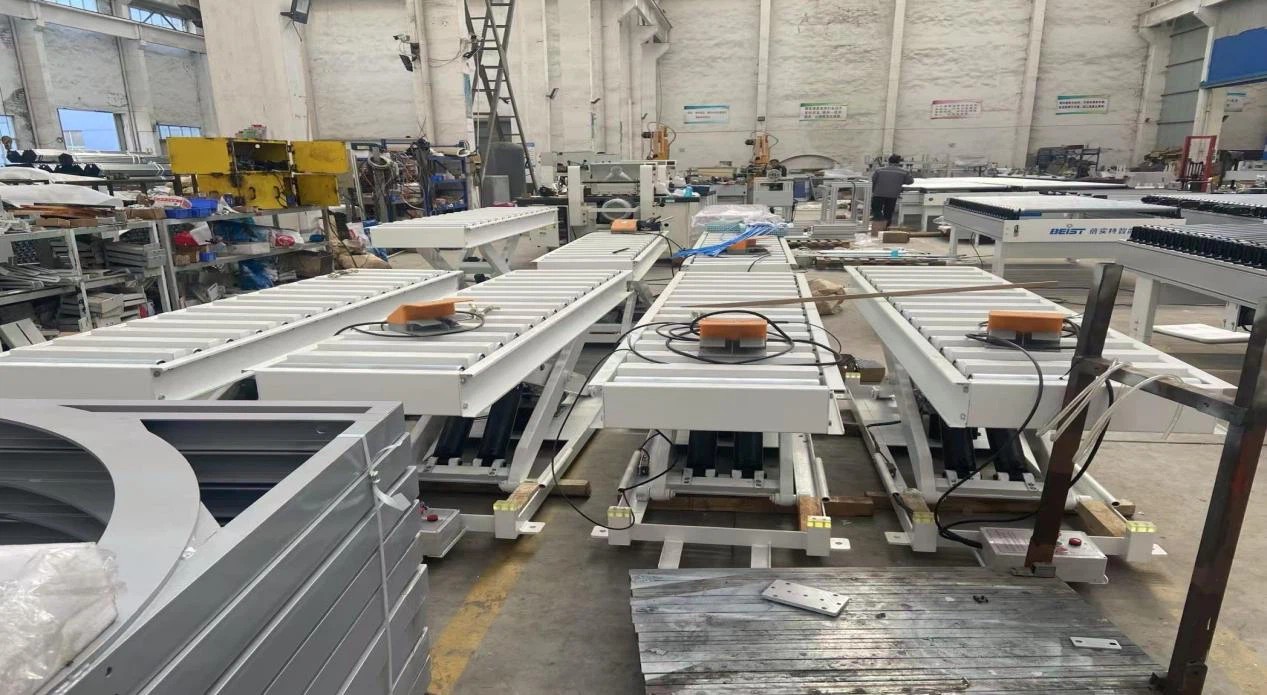

Hydraulic Lift Table Equipped with conveyor top, or we call it lift table with roller on top by short, is also a widely used kind of lift tables. By combining hydraulic lifting mechanisms with integrated conveyor systems, these devices streamline workflows in warehouses and manufacturing facilities, facilitating the movement of goods with minimal manual intervention.
Product details
Hydraulic Lift Table Equipped with conveyor top, or we call it lift table with roller on top by short, is also a widely used kind of lift tables. By combining hydraulic lifting mechanisms with integrated conveyor systems, these devices streamline workflows in warehouses and manufacturing facilities, facilitating the movement of goods with minimal manual intervention. Their notable impact on productivity has made them essential in operations such as assembly lines and loading or unloading processes, where high volumes of materials are regularly handled.
These hydraulic tables are designed to accommodate varying load capacities-ranging from 300 kg to 10 tons-and offer adjustable lift heights to optimize operations between different levels of a workspace. Their ergonomic design significantly reduces physical strain on workers, minimizing the risk of workplace injuries by allowing for safer and more efficient handling of heavy items. Additionally, the ability to customize these tables with various features such as safety skirts, remote controls, and tilting platforms enhances their versatility, making them suitable for a wide array of applications including machine feeding and product assembly
Specification
|
Table size (mm) |
Hu up and down range(mm) |
Load (T) |
Table function |
Control mode |
|
2500*800 |
300-1100 |
2T |
Roller conveyor+ brake box |
pedal |
|
Parts |
Hard Spec |
Quantity |
Wood (preparation) |
|
Brake table |
2500*800mm |
1 set |
8# channel steel and 2.0mm thick square pipe welded |
|
Drum table |
2400*730mm |
1 set |
3mm steel plate bent and assembled with 6020/12 roller |
|
Shear disc yoke flange |
1650*120mn |
1 set |
120*40mm Rectangular pipe welded |
|
Pedestal |
70*70*6mm |
1 set |
7# Angle welded |
|
Oil cylinder |
φ80*40mm |
2 sets |
Precision cylinder, double seal |
|
Hydraulic power unit |
AC2.2KW/50Hz/380V |
1 Set |
High quality hydraulic power unit |
|
Tubing and fittings |
/ |
1 SET |
双层Steel wire mesh integrated forming tubing and stainless steel joint clamping |
|
Electrical panel |
/ |
1 SET |
Integrated electric control box, circuit board control |
|
Foot pedal |
/ |
1 SET |
Cast iron foot switch, strong and reliable, high silver content contact |
Features
Beist Lift Table with conveyor top, or Hydraulic Lift Table Equipped with conveyor top enjoy the following advantages:
Load Capacity and Lift Height
These hydraulic lift tables typically support a wide range of load capacities, from 300 kg to 10 tons, depending on the specific model and design requirements.
Ergonomic Design
The ergonomic design of hydraulic lift tables equipped with conveyor tops is particularly beneficial in reducing the physical strain on workers. By eliminating the need for manual lifting and bending, these tables provide a stable platform for loading and unloading goods, thereby minimizing the risk of workplace injuries.
Versatility and Customization
These lift tables can be customized with various features to enhance performance, including safety skirts, remote controls, tilting platforms, and additional conveyor accessories.
Mechanism of Operation
Hydraulic lift tables utilize a scissor mechanism that consists of interconnected metal arms arranged in a crisscross pattern, resembling a pair of scissors.When hydraulic fluid is pumped into the cylinders, the scissor arms extend, raising the platform to the desired height. The conveyor top further streamlines the process by allowing items to be moved horizontally while elevated, thus integrating lifting and transportation into a single operation.
Application
Hydraulic lift tables equipped with a conveyor top are specialized devices designed to enhance material handling processes in various industrial settings. These tables integrate the functionality of a hydraulic lift with a conveyor system, allowing for efficient lifting and transportation of heavy loads, thereby improving workflow and productivity. For any question, feel free to let us know.
