Unpowered Roller Conveyor
Conveyor Platform for Cold Press
Conveyor For Cold Press, as its name suggests, usually it is used for cold press machine. As we all know, cold press machine is widely used in many factories. But when move products to process under the cold press, especially some heavy products, it will be very hard and labor-intensive.
Product details
Conveyor For Cold Press is also a kind of unpowered Roller Conveyors.
The basic principle is same with traditional Roller Conveyor but the shape and structure is different, and the application is also different.

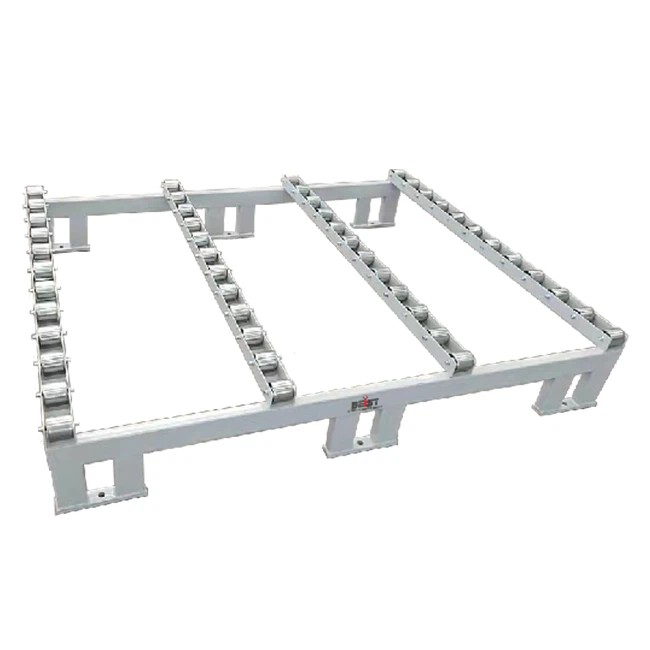

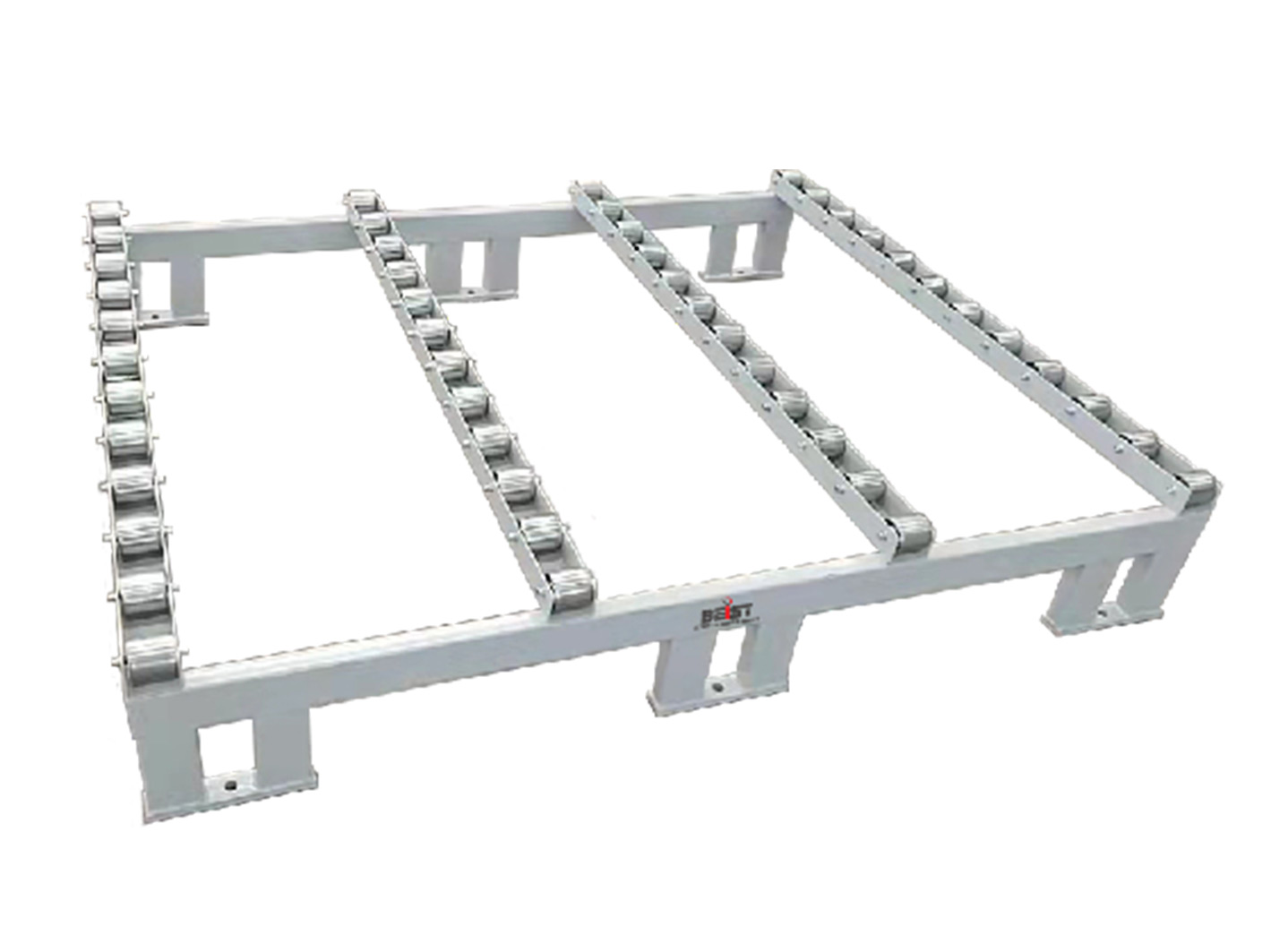

Conveyor For Cold Press, as its name suggests, usually it is used for cold press machine. As we all know, cold press machine is widely used in many factories. But when move products to process under the cold press, especially some heavy products, it will be very hard and labor-intensive. That's how our Beist conveyor platform for Cold Press was born. It is designed to perfectly match with cold press to save labor cost and greatly increase efficiency. With width 1580mm, length 1900mm height 400-420mm.
Specification
|
Hard Spec |
|
|
Application condition |
There should be a backing plate under the conveying product |
|
Plate size |
L2440*W610*H≥18mm |
|
Load |
300kg/set |
|
Number of |
4sets/set |
|
Drum mounting system |
internal thread |
|
internal thread |
manual |
|
Long main beam |
80*40*3mm Rectangular tube welding |
|
Short girder |
5mm Thick pickling plate bent |
|
Roller |
φ60*1.5mm hot-dip galvanized pipe |
|
Inner spindle |
φ12mm Drawing Steel |
|
Stand bar |
60*40*3mm Rectangular pipe welding spray |
|
Air cylinder |
SDA80*20/8 ,route 20mm |
Features
Extensive application
Suitable for all the factories that needs to use cold press, perfectly match with the whole stack of products that need to be processed by the cold press.
High efficiency
Conveniently move items in and out, reduce worker's labor force, increase the efficiency.
Flexibility
Transfer direction is flexible, it can not only be designed to transfer front and back but also left and right according to the actual occasions.
Customization
The height is also calculated in accordance with every different cold press size.
JiangSu Beist Intelligent Equipment Co.,Ltd, who has been in the non-standard industry for more than 10 years, is one of China's leading automation equipment manufacturers. We have more than 30 professional mechanical engineers and technicians to provide one-stop solution for you. If you are interested, please feel free to contact with us.
