Unpowered Roller Conveyor
Roller Transfer Cart On Rail

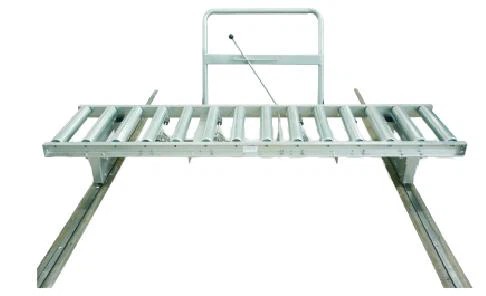

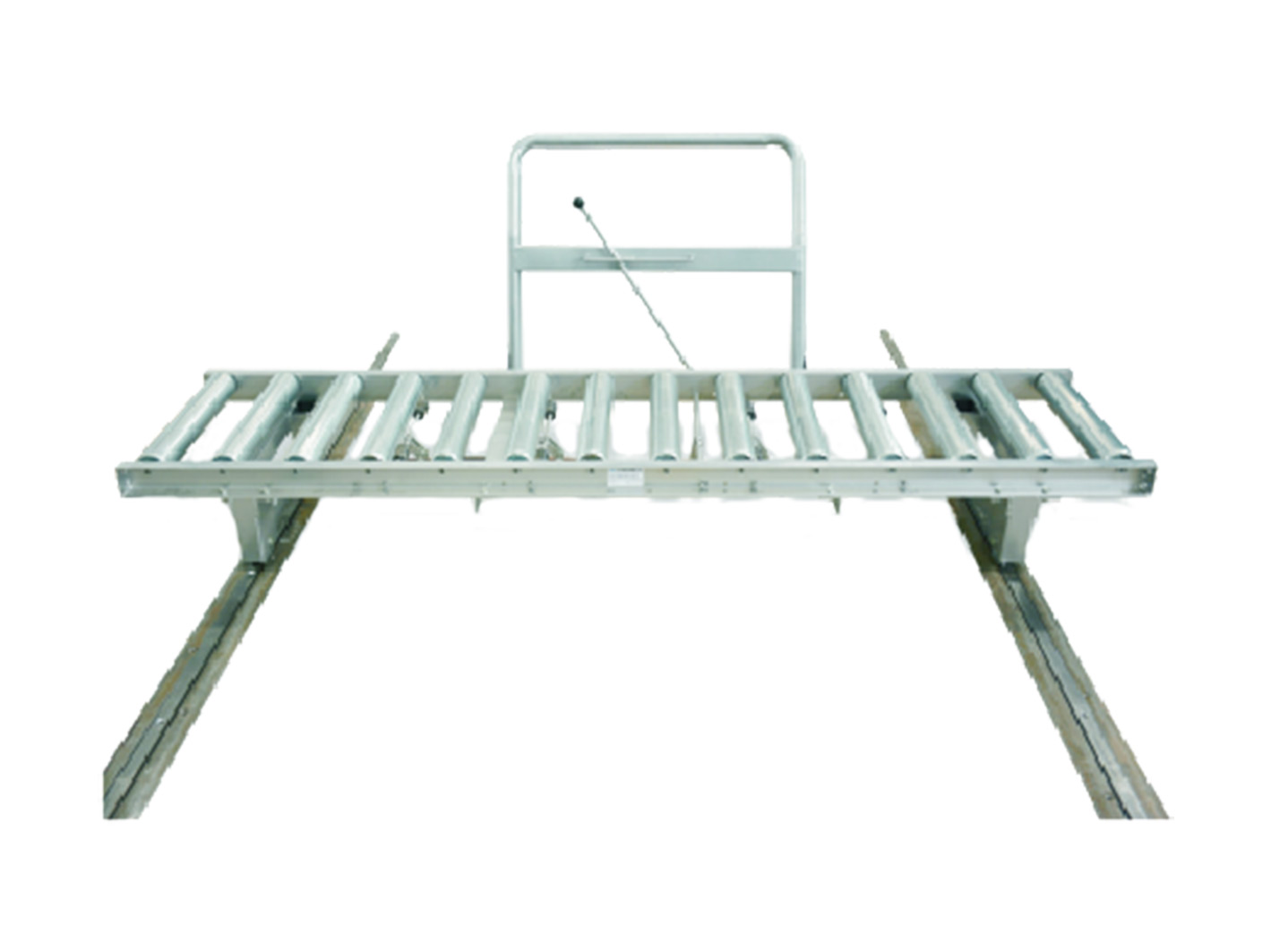

Beist Roller Transfer Cart On Rail, is a combination of Roller Conveyor and cart. Unlike traditional Roller Conveyor Cart, Roller Transfer Cart On Rail needs to be installed and operated on rail, so we call it Beist Roller Transfer Cart On Rail or Beist Roller Transfer Cart with Rail. It not only has the function of roller conveyor but also has the function of hand cart.
Product details
Beist Roller Transfer Cart On Rail, is a combination of Roller Conveyor and cart. Unlike traditional Roller Conveyor Cart, Roller Transfer Cart On Rail needs to be installed and operated on rail, so we call it Beist Roller Transfer Cart On Rail or Beist Roller Transfer Cart with Rail. It not only has the function of roller conveyor but also has the function of hand cart.
|
Model |
Width(mm) |
Length(mm) |
Height(mm) |
|
Single row |
600 |
2800 |
300 |
| 850 | 2500 | ||
|
Double row |
1300 |
2800 |

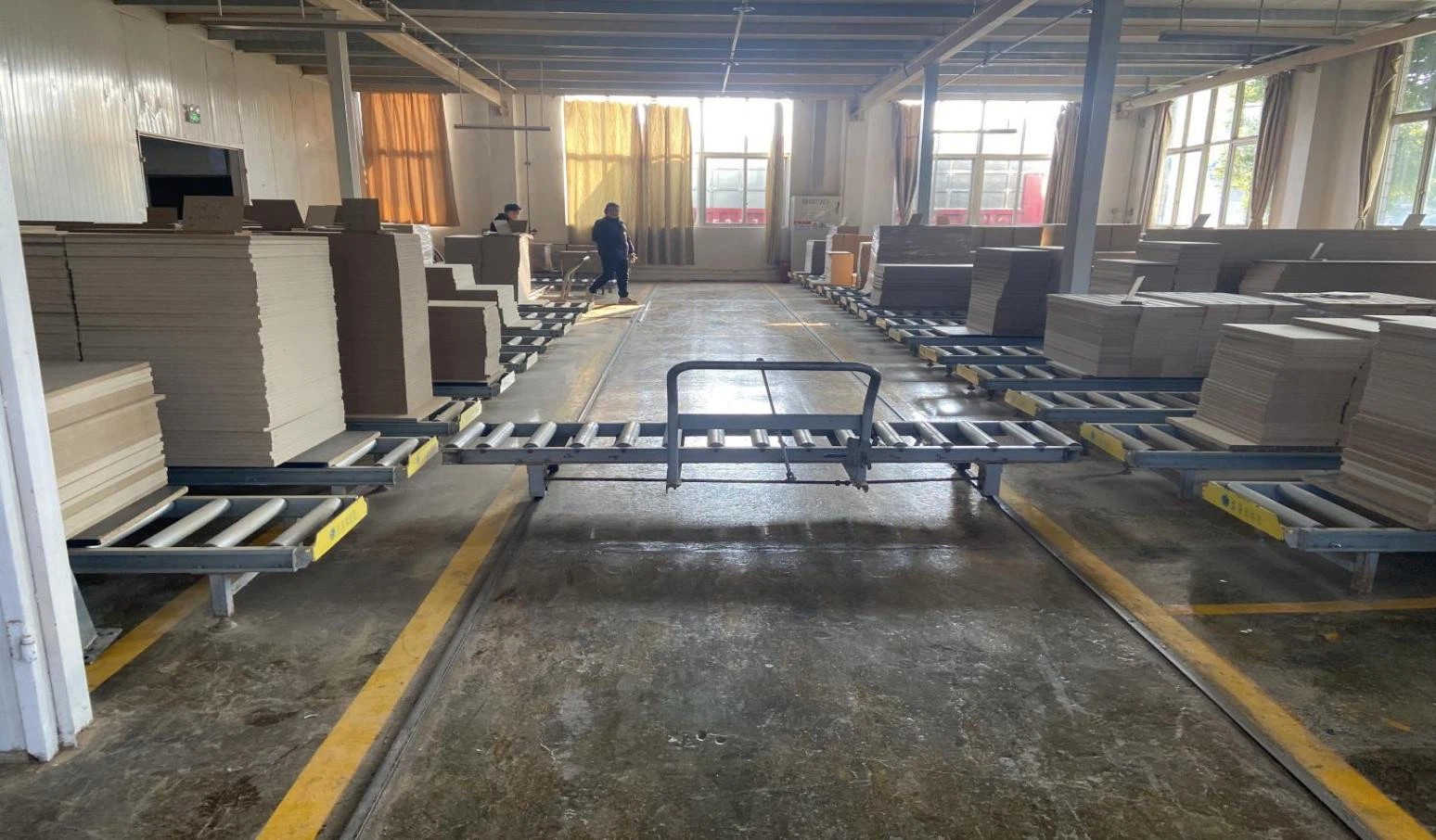

You can see from the below pic of from one of our customers, the rails are installed on the floor, one row only need one Beist Roller Transfer Cart On Rail, no matter consider from the cost or from the factory environment neatness keeping, our Beist Roller Transfer Cart On Rail is a worthy try.
Specification
|
Hard Param |
|
|
Application condition |
There should be a backing plate under the conveying product |
|
Plate size |
L2440*W610*H≥18mm |
|
Load |
1000kg/set |
|
Number of drum |
6 items/m |
|
Drum mounting system |
external thread |
|
Drive mode |
manual operation |
|
Girder |
3mm galvanized sheet |
|
Barrel |
φ76*1.8mm hot-dip galvanized pipe |
|
Rectangular tube welding |
φ12mm Cold-Drawn Steel |
|
Wheel carrier |
120*60*4mm Rectangular tube welding |
|
Steel wheel |
φ110*40mm It is made of 45# round steel car |
|
Bearing |
One steel wheel is equipped with two 6304 national standard bearings |
|
Handrail |
φ38*2mm Cold-drawn pipe is welded by rolling bending |
|
Handrail Angle |
5mm equal thickness Angle steel is used |
|
Other |
A manual brake is built in to improve the transportation safety system |
|
Ground rails and baffles need to be configured separately |
Advantage
Our Beist Roller Conveyor Carts enjoy a lot of advantages, so we are one of China's leading automation equipment manufacturers. We have more than 30 professional mechanical engineers and technicians to provide one-stop solution for our customers and we have entered long- term cooperation with many customers in china and abroad.
It is suitable for conveying whole stack of sheet parts between different production processes. No matter in the furniture production workshop or other product workshops, it will greatly improve work efficiency the and makes the scene in order and in neat.
Features
- Reliable and stable: The main material of Conveyor Rollers is carbon steel plate, which ensures high strength and toughness, workers will be safe when using this to transfer heavy products.
- Easy Installation: Easy to setup, hassle-free operation.
- Convenient operation: User-friendly streamlined Handrail design. With two kinds of safety protection devices to improve the safety level during the conversion process.
- Maintenance-Free: Basically no need maintenance, service life more than 10 years.
- Match with Track line: Slope ground track line can be used to reinforce the pavement to effectively protect the ground wheel line.
- Corrosion resistance: The rollers are hot-dip galvanized pipes, which have high corrosion resistance and can pass 72-hour salt spray test.
Safe
The turntable is laser cut with 10mm thick steel plate, and the diameter is increased to 2000mm to prevent the plate from turning up at one end during the conversion.
If you are interested, don't hesitate to let us know.
