Hydraulic Lift Table

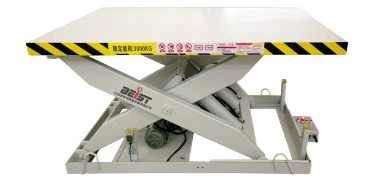

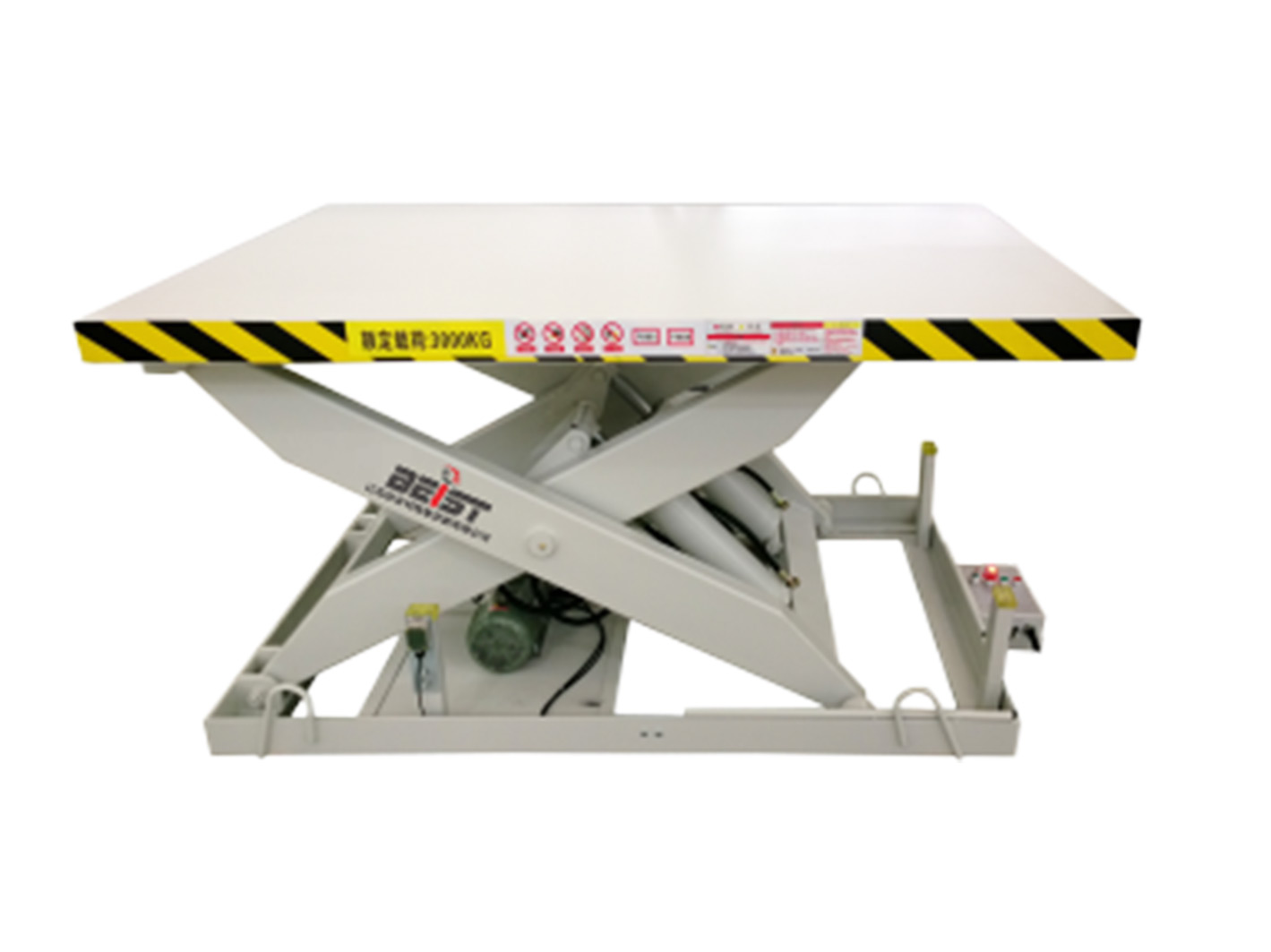

Electric Hydraulic Lift Table
JiangSu Beist Intelligent Equipment Co.,Ltd, who has been in the non-standard industry for more than 10 years, is one of China’s leading automation equipment manufacturers. We have more than 30 professional mechanical engineers and technicians to provide all kinds of electric scissor lift tables with varying capacities, platform sizes and travel specifications.
Product details
JiangSu Beist Intelligent Equipment Co.,Ltd, who has been in the non-standard industry for more than 10 years, is one of China's leading automation equipment manufacturers. We have more than 30 professional mechanical engineers and technicians to provide all kinds of electric scissor lift tables with varying capacities, platform sizes and travel specifications.
Function
Electric Hydraulic Lift Table is also a kind of our lift tables, it also has all the safety features of our lift tables Series. With its small and light weight structure, electric scissor hydraulic lift table makes it a great ergonomic option for the workplace. Workers can save human stain by using it to make job easier, improve work speed and cut production time easily.
They provide a smart, ergonomic solution for boosting productivity and improving workplace safety because of their wide range of capacities, platform sizes and options for lifting heights.
This table can be manually unload and load, no need a forklift, which reduces the need to bend and stretch to transport loads. Its flat-top design makes the product accessible from all sides. Also it can be easily transported and used in multiple areas as it's compact.
Specification
|
Sep |
Quantity |
Wood (preparation) |
|
|
Brake table |
2500*800 |
1 set |
80*40*3mm square pipe 3.0mm steel plate welded |
|
Shear disc yoke flange |
1800*150mn |
1 set |
180*65mm rectangular pipe welded |
|
Pedestal |
100*100mm |
1 set |
10# Angle welded |
|
Oil cylinder |
D100*50m |
2sets |
Precision cylinder, double seal |
|
Hydraulic power unit |
AC2.2KW/50Hz/380V |
1 set |
High quality hydraulic power unit |
|
Tubing and fittings |
/ |
set |
Double wire mesh integrated forming tubing and stainless steel joint clamping |
|
Electrical panel |
/ |
1 set |
Integrated electric control box, circuit board control |
|
Foot pedal |
/ |
set |
Cast iron foot switch, strong and reliable, high silver content contact |
Features
Our Beist electric hydraulic lift table enjoy the following features:
Flexible Capacities: Capacities available for various factory or field application.
High Quality : High quality carbon steel construction, hard chrome plated piston rods, easy operation, and emergency off-switch are all included.
Cost effective: Easy operation, easy maintenance, minimizing downtime and maintenance costs.
Hydraulic lift equiped tables: A mechanism called scissor legs or a hydraulic system is used to raise and lower the platform. High pressure cylinder with dual safety function.
Scissor lift equiped tables: Scissor lift tables use a scissor-like mechanism to raise and lower the platform vertically. The scissor lift mechanism includes a series of connected folding supports, resembling a scissors, that extend and retract, through hydraulics or an electric motor.
Pallet lift tables: specific designed to handle loads on pallets.
Applications
No matter in industrial or commercial applications, lift tables can be used to lift heavy loads.They can be used in warehouses, distribution centers, and industrial settings for storage or transportation. Proper training to use a lift table is recommended for safety reasons.
