Hydraulic Lift Table
Lifting Table with Roller Conveyor

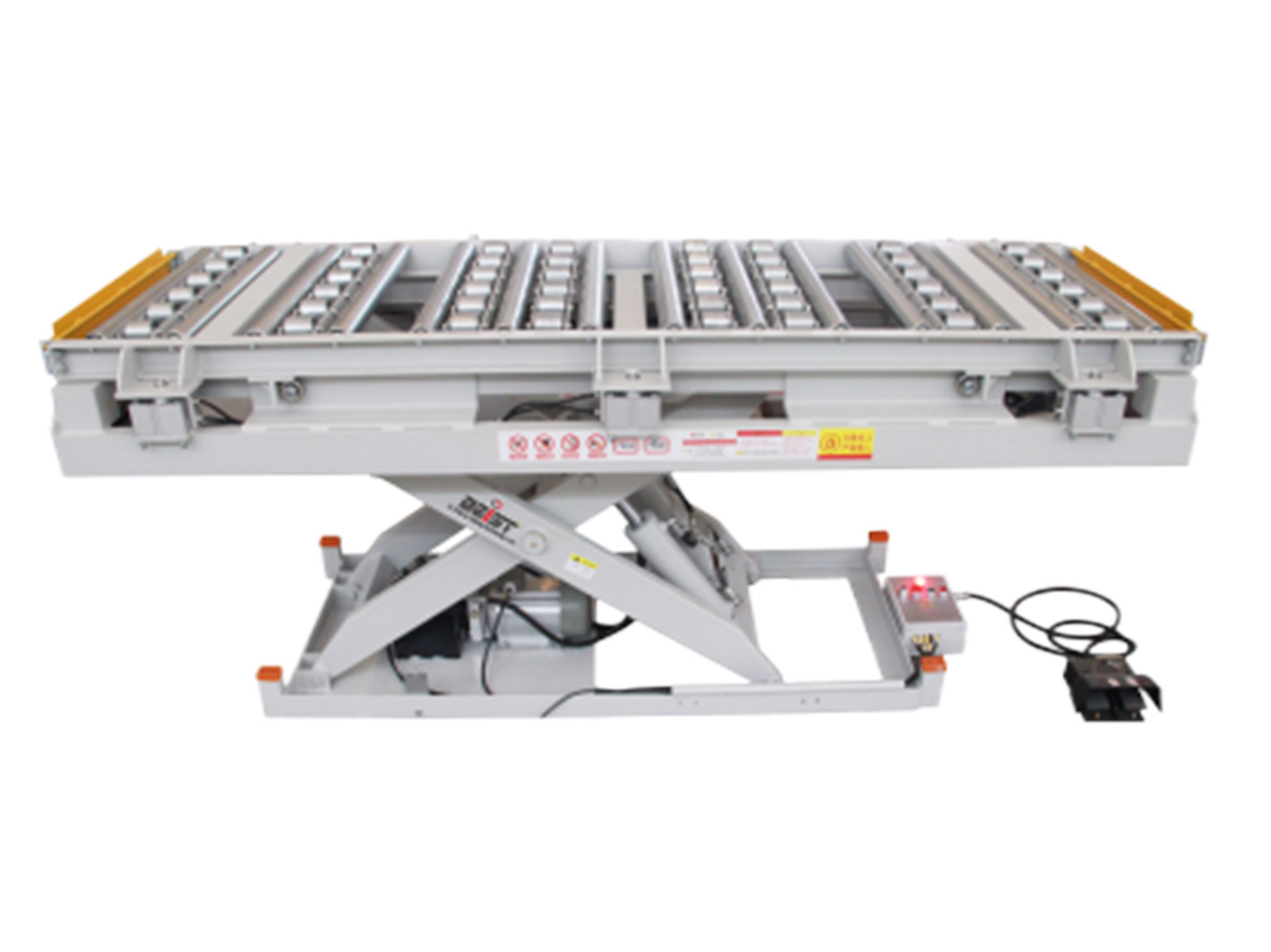

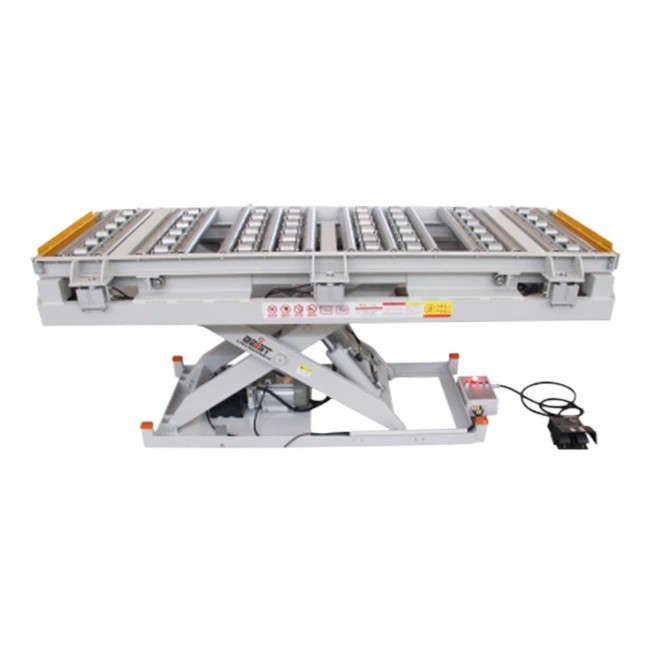

Jiangsu Beist Lifting Table With Roller Conveyor (Transverse Vs. Longitudinal) is a very unique lift table among all the market because of its multi functions. First it is a combination of lifting table and roller conveyor. When the rollers rotate, heavy products can convey through easily, greatly reduce the workload of workers and increase production efficiency
Product details
Jiangsu Beist Lifting Table With Roller Conveyor (Transverse Vs. Longitudinal) is a very unique lift table among all the market because of its multi functions. First it is a combination of lifting table and roller conveyor. When the rollers rotate, heavy products can convey through easily, greatly reduce the workload of workers and increase production efficiency; Lift table, as we all know, they can travel up and down to load and unload material also with a centre support to facilitates the handling of pallets so they can support an improved working posture and reduce physical strain.
Lifting Table With Roller Conveyor is exactly a perfect combination of these two. What's more, it can not only transfer items horizontally but also vertically. These devices can greatly streamline workflows in warehouses and manufacturing facilities, facilitating the movement of goods with minimal manual intervention.
Specification
|
Table size(mm) |
Range of vertical stroke(mm) |
load(T) |
Mesa function |
Mesa function |
|
2500*800 |
300-1100 |
2 |
Transverse &Longitudinal |
foot pedal |
|
Part name |
Spec |
Quan |
Wood (preparation) |
|
Brake table |
2500*800mm |
1 set |
8# channel steel and 2.0mm thick square pipe welded |
|
Roller table |
2400*730mm |
1 set |
3mm steel plate bent and assembled with 6020/12 roller |
|
Roller |
1650*120mm |
1 set |
120*40mm rectangular pipe welded |
|
Pedestal |
70*70*6mn |
1 set |
7# Angle welded |
|
Oil cylinder |
φ100*50mm |
2 pcs |
Precision cylinder, double seal |
|
Hydraulic power unit |
AC2.2KW/50Hz/380V |
1 set |
High quality hydraulic power unit |
|
Tubing and fittings |
1 set |
Double wire mesh integrated forming tubing and stainless steel joint clamping |
|
|
Electricity box |
/ |
1 set |
Integrated electric control box, circuit board control |
|
Foot pedal |
/ |
1 set |
Cast iron foot switch, strong and reliable, high silver content contact |
Features
Flexible Capacities: Capacities available for various factory or field application.
High Quality: High quality carbon steel construction, hard chrome plated piston rods, easy operation, and emergency off-switch are all included.
Cost effective: Easy operation, easy maintenance, minimizing downtime and maintenance costs.
Ergonomic Improvements
Improved ergonomic conditions lead to higher employee morale, better job satisfaction, and increased overall productivity, creating a positive feedback loop that benefits both employees and employers.
