Hydraulic Lift Table
Conveyor Top Hydraulic Lift Table
JiangSu Beist Intelligent Equipment Co.,Ltd, who has been in the non-standard industry for more than 10 years, is one of China’s leading automation equipment manufacturers. We have more than 30 professional mechanical engineers and technicians to find the perfect solution for your conveyor lift solution.
Product details
JiangSu Beist Intelligent Equipment Co.,Ltd, who has been in the non-standard industry for more than 10 years, is one of China's leading automation equipment manufacturers. We have more than 30 professional mechanical engineers and technicians to find the perfect solution for your conveyor lift solution.
Function

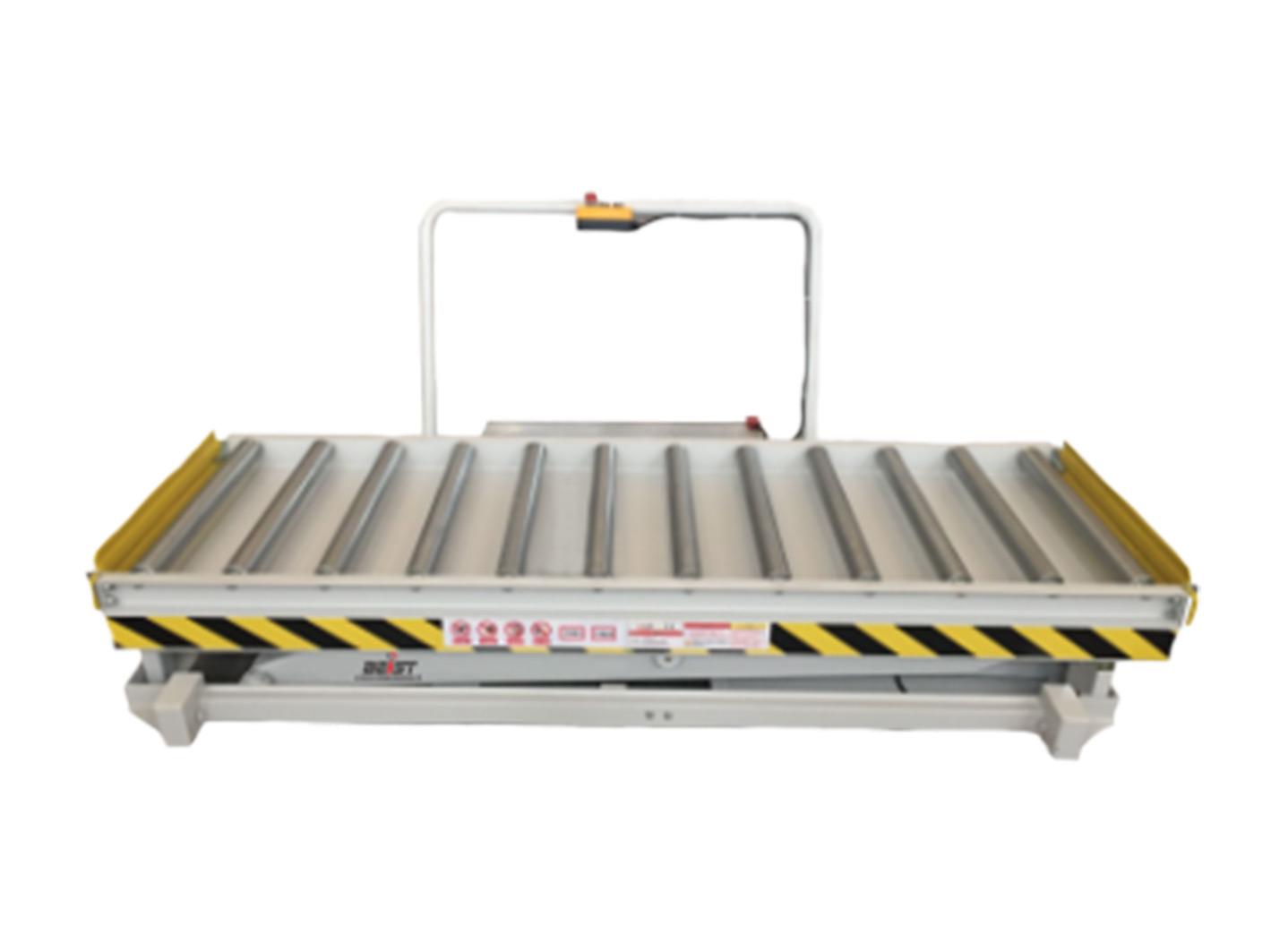

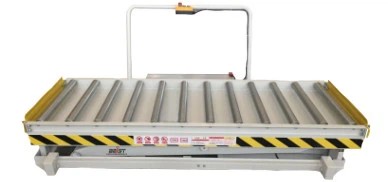

Conveyor Top Hydraulic Lift Table, as its name suggests, it is a hydraulic lift table Equipped with conveyor top. It not only has the function of the lift but also has the function of a conveyor. For example if a manufacturer of automotive components like furniture or new environmental had an application that required lifting and off loading palletized product in a size restricted area, our hydraulic lift table equipped with a roller conveyor top can help with least cost.
With Beist Hydraulic lift table cart , now you can free your back or knees for material flow because it will make loading and unloading be simple and convenient. Lifting tables with roller conveyors are built to reduce the harm for human body when doing too much lifting and twisting. A roller conveyor can easily drive the flow of materials and lift table can up and down travel, is it much more efficient, right?
Specification
|
Parts |
Specification |
Quantity |
Material |
|
Brake table |
2500*800mm |
set |
8# channel steel and 2.0mm thick square pipe welded |
|
Drum table |
2400*730mm |
set |
3mm steel plate bent and assembled with 6020/12 roller |
|
Scissor arm |
2200*120mm |
1 set |
120*40mm rectangular pipe welded |
|
Pedestal |
70*70*6mm |
set |
7# Angle welded |
|
Oil cylinder |
Φ 80*40mw |
2 sets |
Precision cylinder, double seal |
|
Hydraulic power unit |
AG2.2KW/50Hz/380V |
set |
High quality hydraulic power unit |
|
Tubing and fittings |
/ |
set |
Double steel wire mesh integrated forming tubing and stainless steel connection |
|
Electrical panel |
/ |
set |
Integrated electric control box, circuit board control |
|
Foot pedal |
set |
Cast iron foot switch, strong and reliable, high silver content contact |
|
|
Batteries and chargers |
/ |
Jiangsu produced high quality battery and charger, battery 2 groups |
Features
Efficient:
It not only has the function of the lift but also has the function of a conveyor, permits easy movement of cargo for loading and unloading.
Versatile:
Lift carts can be used wherever lifting, positioning, assembling, stacking, unstacking, transporting or used as an adjustable height work surface.
Helpful:
Elevating tables minimize worker bending and lifting. Material can easily be loaded onto cart, lowered for safe portability, and unloaded at destination.
Cost saving:
These practical and economical portable lift tables provide a convenient and solution to numerous material handling situations.
High Quality :
High quality carbon steel construction, need little maintenance and can be used for many many years.
If you are interested, don't hesitate to call me.
