The basic principle is same with traditional Roller Conveyor. But the difference is it can not only transfer items horizontally but also vertically.<br />
Multi - directional transmission is realized with its unique structure.

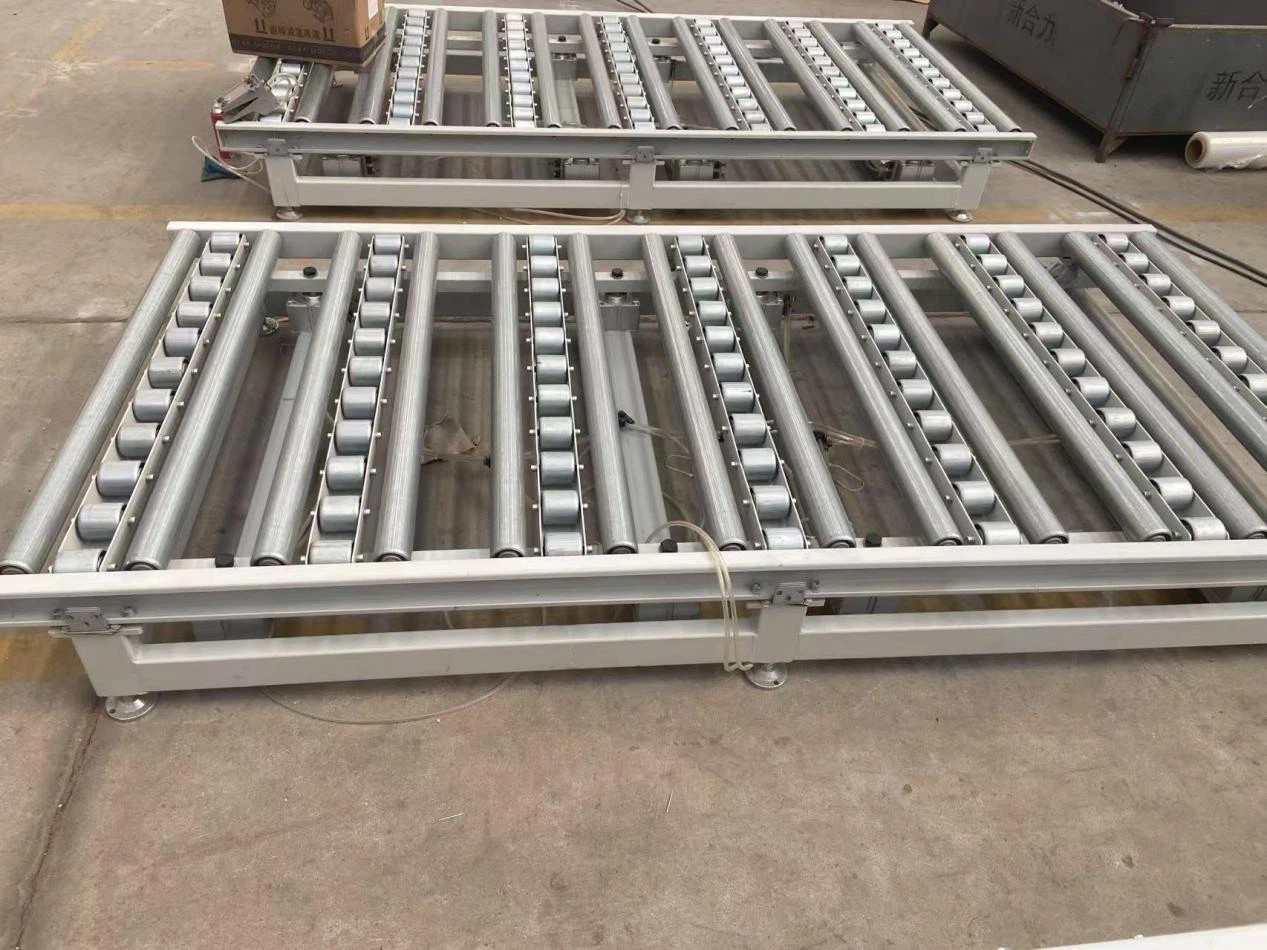

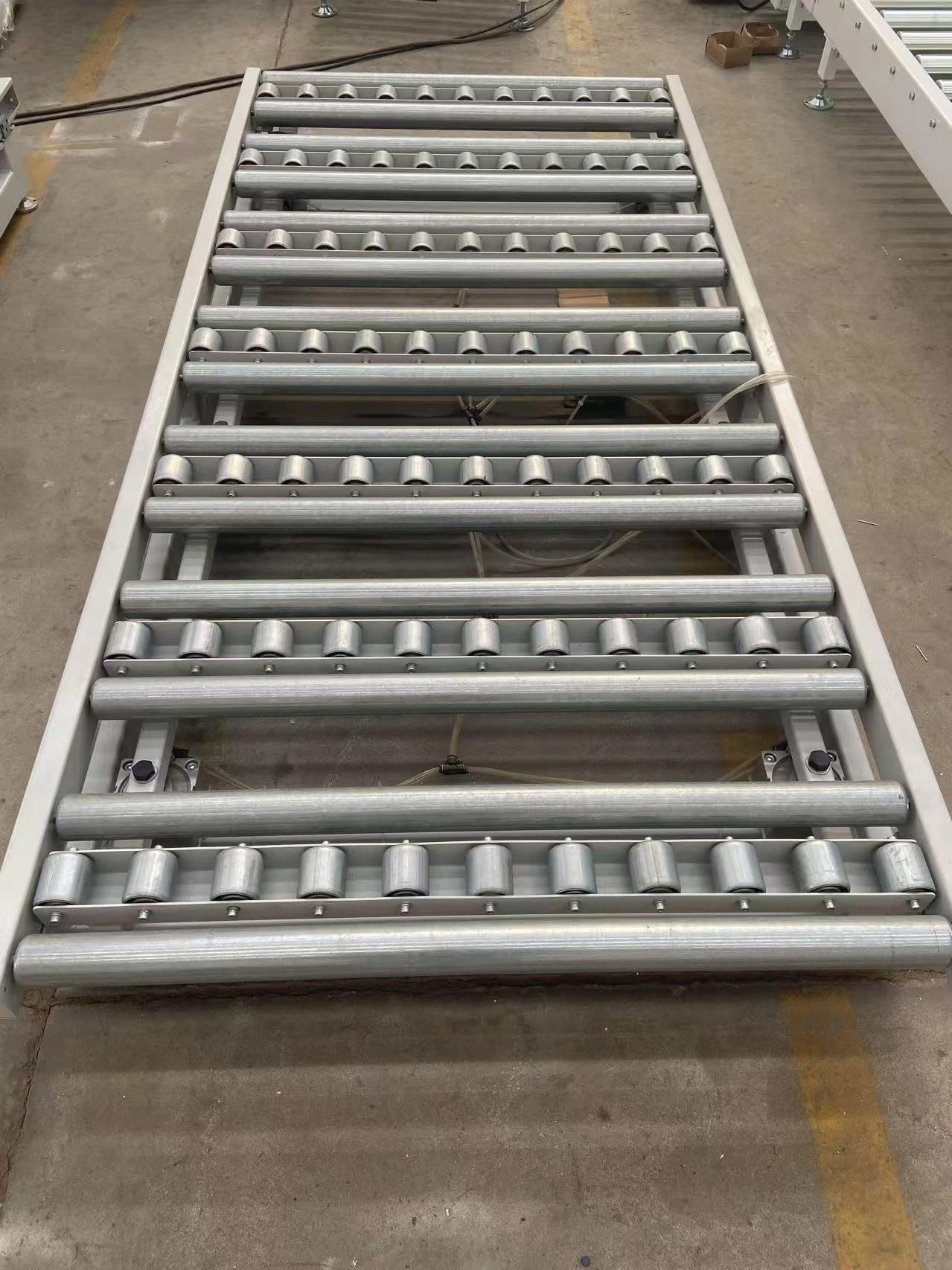

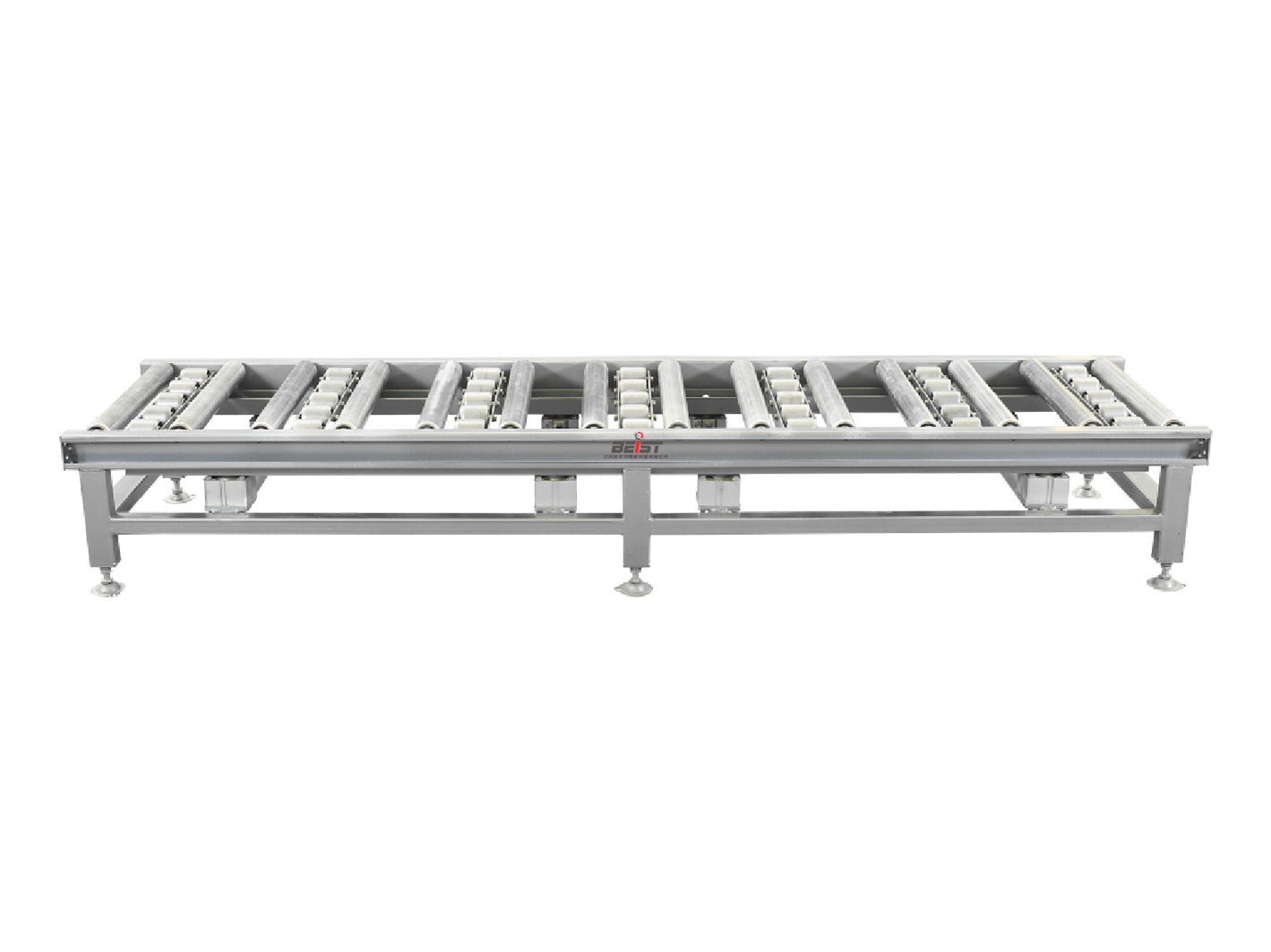

Pneumatic Roller Conveyor is also a kind of unpowered Roller Conveyors.
The basic principle is same with traditional Roller Conveyor. But the difference is it can not only transfer items horizontally but also vertically.
Multi - directional transmission is realized with its unique structure.
Pneumatic Roller Conveyor also is equipped with an air cylinder. There is no power on the roller conveyor, and the material is pushed to the pneumatic horizontal and vertical translation platform by manual or machine and then push away, so clever as you have already found, Pneumatic Roller Conveyor is always used with other facility together in a specific factory especially in furniture industry.
Like traditional Roller Conveyor, When the rollers rotate, heavy products can convey through easily, greatly reduce the workload of workers and increase production efficiency.
Specification
Width (mm) |
Length(mm) |
height(mm) |
Load (kg/set) |
600 1300 |
2500 |
300±20 400±20 |
1000 |
3000 |
Hard Spec |
||
Application condition |
There should be a backing plate under the conveying product |
|
Plate size |
L2440*W610*H≥18mm |
|
Number of drums |
7 sets/sets, 14 long rollers, 28 short rollers |
|
Drum mounting system |
internal thread |
|
Drive mode |
manual |
|
Long main beam |
3mm Thick pickling plate bent |
5mm thick 8# channel steel (GB) |
Short girder |
4mm Thick pickling plate bent |
|
Thick pickling plate bent |
φ76*1.8mm hot-dip galvanized pipe |
|
Short drum |
φ60*1.5mm hot-dip galvanized pipe |
|
Inner spindle |
φ12mm Drawing Steel |
|
Stand bar |
60*40*1.5mmRectangular pipe welding spray |
80*40*3mm Rectangular pipe welding spray |
Adjustable foot cup |
M16*70mm with M6 expansion screw holes |
|
Air cylinder |
SDA80*20/8个,journey 20mm |
|
Other |
One foot switch is complimentary |
Product features
Having helped many factory customers save a lot of cost with our automation equipment, Jiangsu Beist has already established reliable and long-term cooperation with many customers in China and all over the world.
Quality first
The main beam is bent by the most advanced CNC bending machine, with accurate angle and neat surface;Rollers are made of high-quality wear-resistant and corrosion-resistant finishes reduce friction, passed 72 hour's salt spray test; Roller holes are one time processed by CNC Laser Cutting Machine to ensure levelness of the roller surface to and center distance.
High efficiency
Convenient pass through, improve the production efficiency of the press section in furniture industry, reduce labor force.
Two directions delivery
It can not only transfer items horizontally but also vertically.
Flexible and stable
Stroke of air cylinder 20mm. With a high but stable lifting efficiency.
The height of the holder foot be adjusted, which can solve customers' uneven ground problem. Baffle have been added at both ends to prevent the workpiece moving.
